Szigetelt villámvédelem

Holder variants for conductors and air-termination rods for keeping the separation distance according to IEC/EN 62305-3.
Spacer bar made of glass-fibre reinforced plastic (GRP), Ø16 mm, UV stabilised, light grey colour.

For implementing isolated air-termination systems e.g. on flat roofs, installed on wedge mounting contrete base.

Material factor k_m = 0.7 is used to determine the separation distance (length of spacer bar).
Diameter 16 mm, UV stabilised, light grey colour, permanent temperature range -50 to +100 °C.

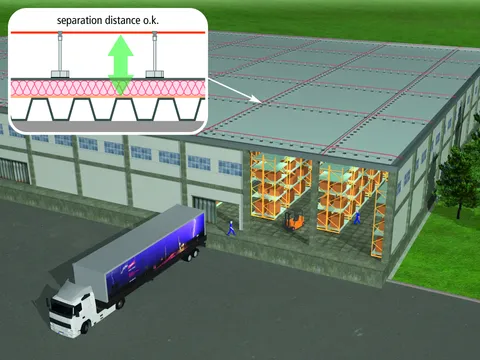

Variable range of holders for keeping the separation distance when installing conductors on flat roofs.
Spacer bar made of glass-fibre reinforced plastic (GRP) Ø10 mm, UV-stabilised, light grey colour.

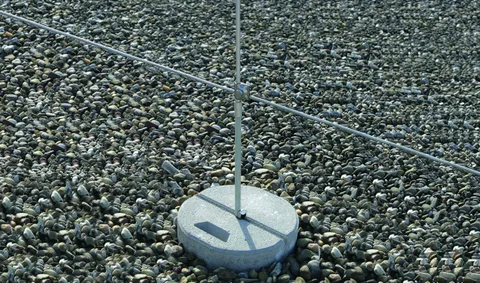

Spacer with concrete block and support plate for conductor Rd 8 mm.

Components for isolated air-termination systems.

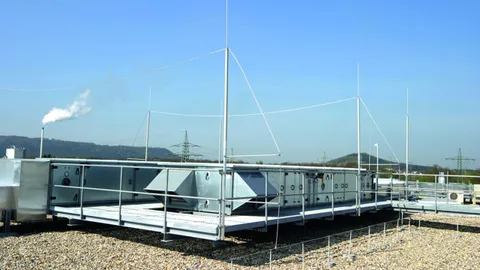

For protecting roof-mounted structures, e.g. air-conditioning systems, heat exchangers etc.

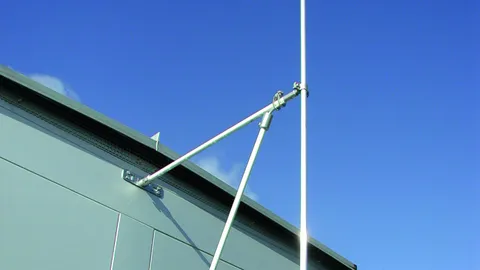

For keeping the separation distance to electrically conductive parts according to IEC/EN 62305-3.
The separation distance (insulating clearance) is determined with material factor k_m = 0.7.
