Bilincsek, csatlakozók

Kapcsok és csatlakozók a vezetékek, felfogó rendszerek különböző követelmények szerinti szereléséhez

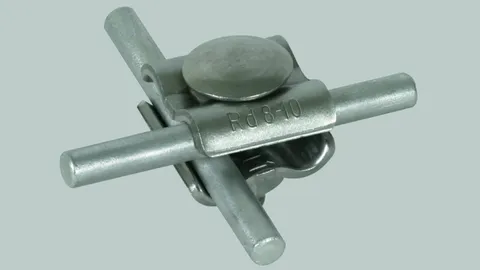

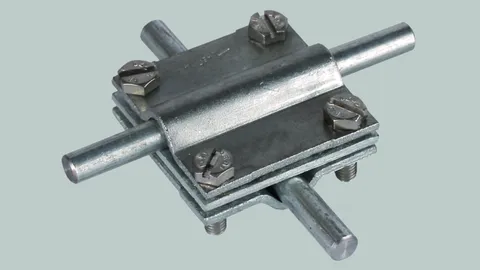

MV Kapcsok

Multipurpose connecting clamp (MehrzweckVerbindungs-Klemme) for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

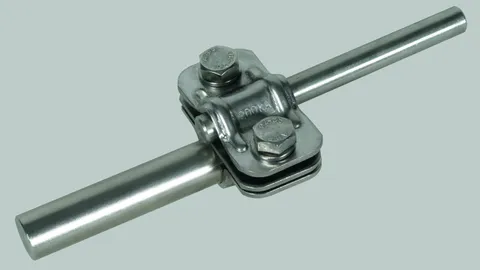

MMV Kapcsok

Mini multipurpose connecting clamp (Mini-MehrzweckVerbindungs-Klemme) for universal use as a cross clamp, T clamp and parallel clamp, with anti-rotation protection.

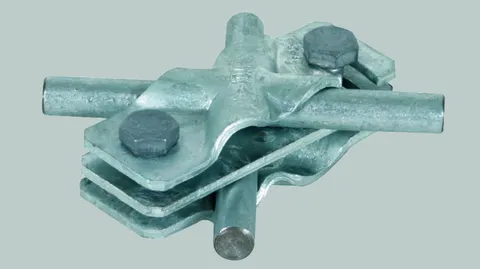

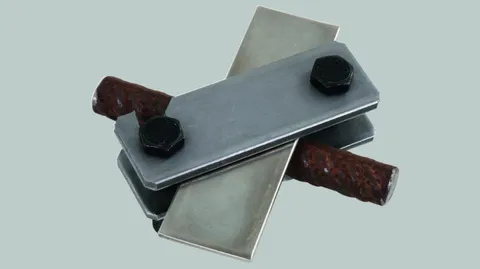

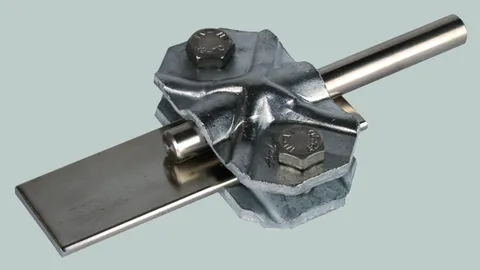

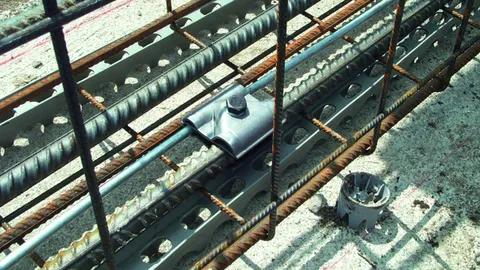

MAXI MV Kapcsok

MAXI multipurpose connecting clamp (MAXI-MehrzweckVerbindungs-Klemme) for universal use as cross clamp, T clamp and parallel clamp, for connecting earth rods or reinforcements; three-part, with thread in the base part.

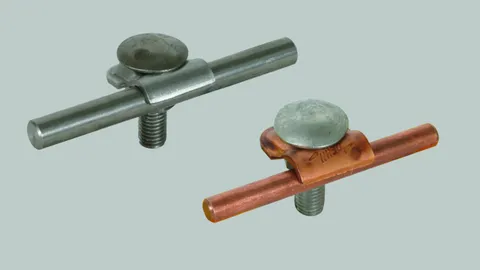

Kapocsbak változatok

For example as a connection with end piece for constructions or downpipe clamps.
Clamping piece with square hole 11 mm and truss head screw.

KS összekötők

Clamping screw connector (KlemmSchrauben-Verbinder) for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system.

Összekötők

For connecting round conductors in T and longitudinal arrangements.

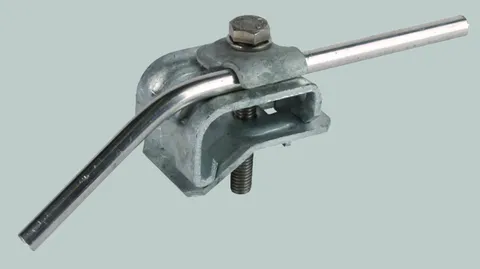

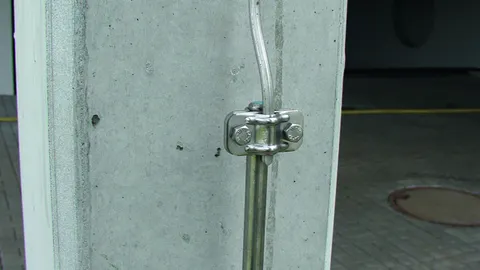

ES bontókapocs

Single-screw disconnecting clamp (Ein-Schrauben-Trennklemme) for connecting down conductors with earth entries.

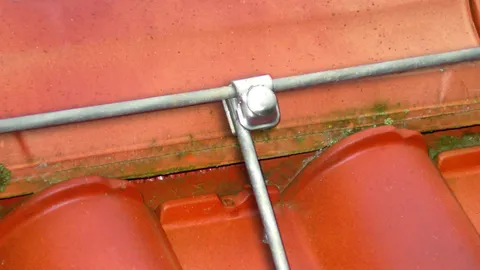

Üniverzális összekötő kapocs

For connecting round conductors in cross, T, and parallel arrangements and for twin conductor connection.

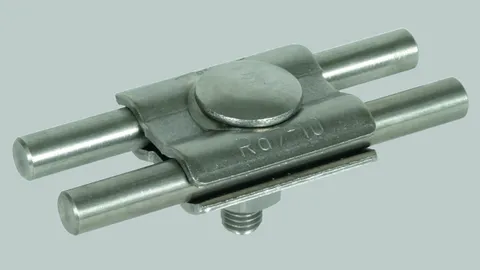

Párhuzamos összekötő

For connecting two conductors in parallel arrangement.

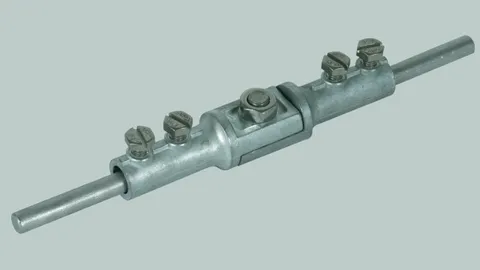

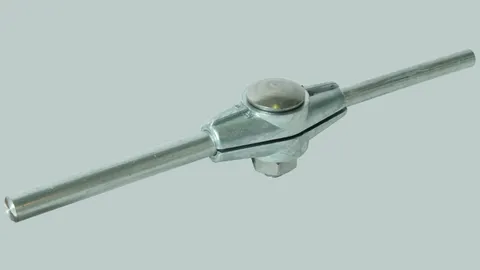

Vezetőtoldók

For longitudinal connection of two round conductors with four screws.

Föld feletti keresztösszekötő kapocs

For cross and T connection of conductors.

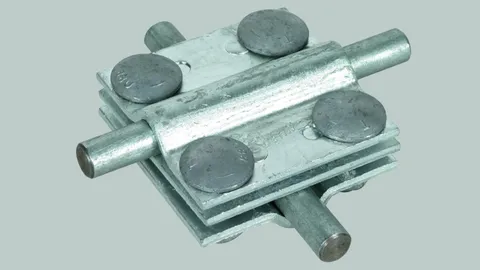

Föld feletti és föld alatti keresztösszekötő kapocs

For cross and T connection.

Föld feletti és föld alatti kapupántcsavaros keresztösszekötő kapocs

For conductors in cross and T arrangement. Version with anti-rotation protection for mounting with a tool.

SV ferdekapocs föld alatti csatlakozáshoz

SV clamps (Schräg-Verbinder-Klemmen)
Diagonal connecting clamps for cross and T connections.

SV ferdekapocs föld feletti és föld alatti csatlakozáshoz

Diagonal connecting clamps (Schräg-Verbinder-Klemmen) for cross and T connections, screws with anti-rotation protection.

SVP ferde és párhuzamos összekötő kapocs föld feletti és föld alatti csatlakozáshoz

Diagonal and parallel connecting clamps (Schräg-Verbinder-Parallel-Klemmen) for cross and parallel connections, with slotted upper part (no need to detach the screws).

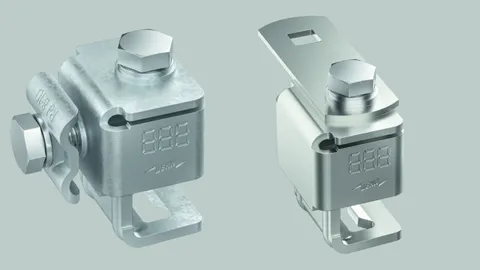

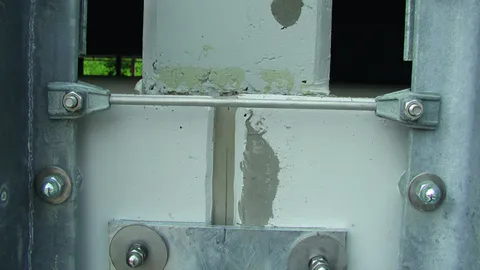

Összekötő kapcsok

For connection to steel constructions and steel sheets.

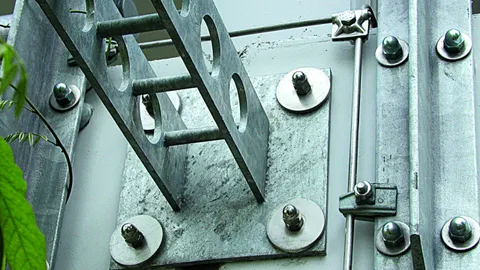

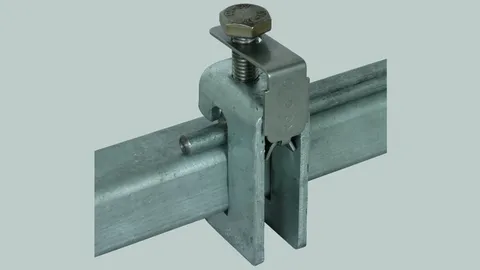

Összekötő kapcsok acélpillérekhez

Heavy design, for connection to steel constructions.

Összekötő kapcsok nyomólappal

For connection to steel constructions and steel sheets with a single-screw technique.

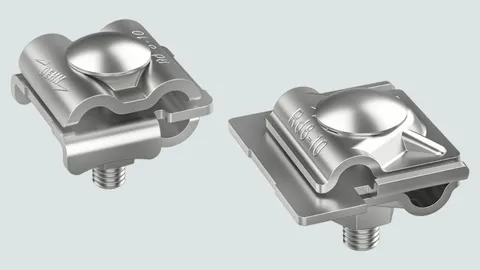

Korckapcsok

For connecting conductors with seams of the same or of different materials.

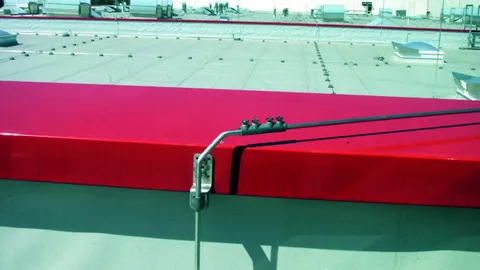

Korckapcsok megnövelt érintkezési felülettel

For connecting conductors with seams; enlarged contact surface.

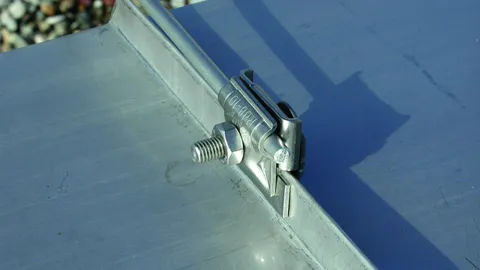

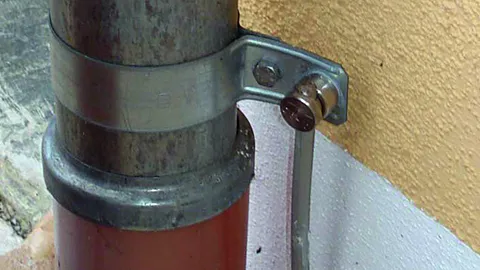

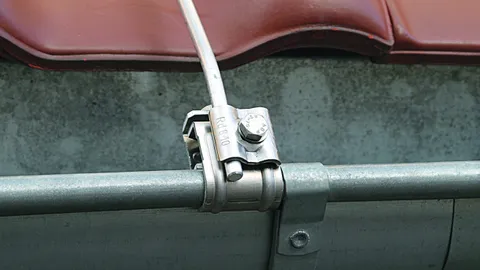

Egycsavaros ereszcsatorna kapocs

For connecting conductors with gutters.

Ereszcsatorna kapcsok

For connecting conductors with gutters.

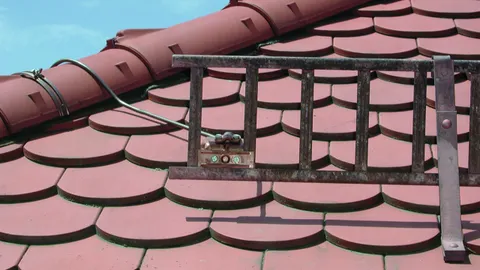

Hófogó rács kapcsok

For connecting conductors to snow guards, longitudinal connection with two-screw cleat.

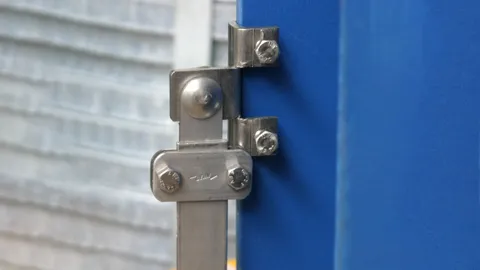

Z alakú csatlakozópántok

For connecting metal claddings by blind rivets or screws.

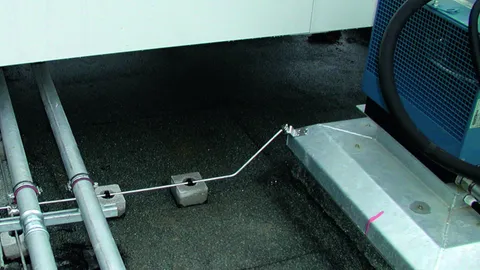

Leszorító kapcsok

For connecting conductors with construction parts.

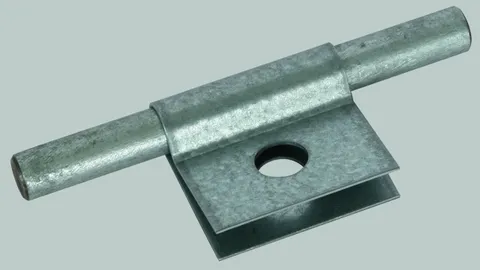

Kapocs elemek

For connecting flat material with construction parts or, for example, with connection clamps for steel girders (without bore in the flat strip).

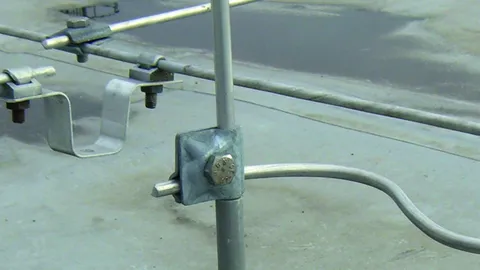

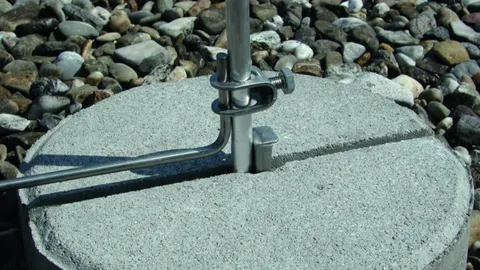

FS felfogórúd-kapocs

For connecting air-termination rods with one or two conductors.
Connection of two conductors improves the distribution of lightning current and reduces the separation distance.

Rúd kapcsok

For connecting air-termination rods with conductors, for lengthwise connection of all conductor materials.
Crosswise connection (crosswise arrangement) only St/tZn and StSt.

Felfogórúd toldók

With embossings (stop boss) for connecting longer air-termination rods (transport length).
When using the connecting sleeve, the air-termination rod must be fastened additionally above the sleeve.

MV kapcsok felfogó rúdakhoz

Multi-purpose connecting clamp for universal use as a cross clamp, T clamp and parallel clamp; two-piece.

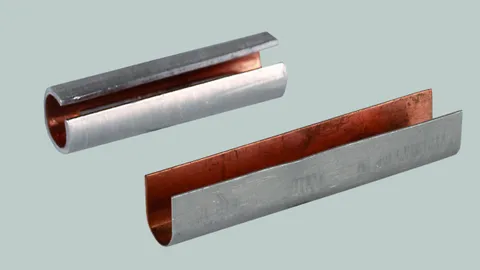

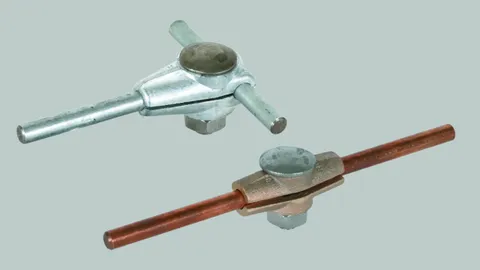

Cupal hüvelyek

For corrosion-resistant connection between steel or aluminium and copper.

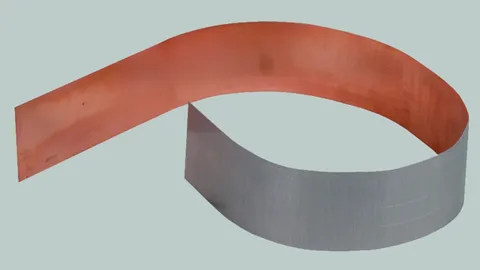

Cupal lemezek

Metal strips for corrosion-resistant connection between steel or aluminium and copper.

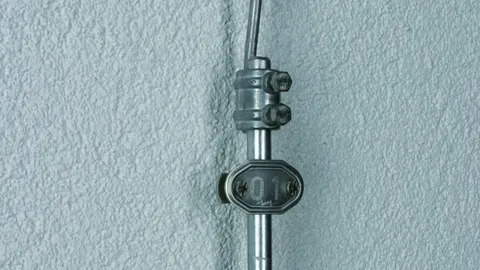

UNI bontókapcsok

For connecting down conductors with earth entries or for connecting conductors of different materials.

Bontókapocs – Osztrák szabvány

With connecting screw, for round conductors.

Összekötő - / Bontókapcsok

Two-part or three-part connection system with thread in the base part.

Leválasztó hüvelyek

For connecting down conductors with the earth entries.

Összekötő elemek 200 kA (10/350 μs)

For use in protection class I and II of the lightning protection system (class of LPS I, II).
Clamps are tested with a 200 kA (10/350 µs) lightning impulse current, based on EN 62561-1.

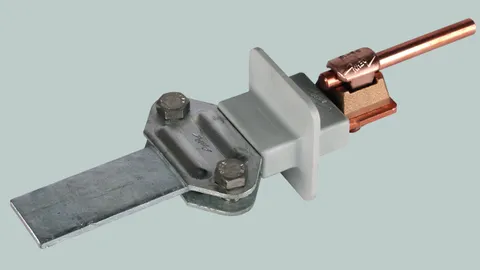

Kétfémes bontókapocs árnyékolással

Bimetallic type for connecting conductors made of different materials.
