Földelési fixpontok, Fali rögzítők

A betonba történő beépítéshez rögzített földelő fixpontok lehetővé teszik a védő vagy funkcionális potenciálkiegyenlítés csatlakoztatását a földelő rendszerhez.

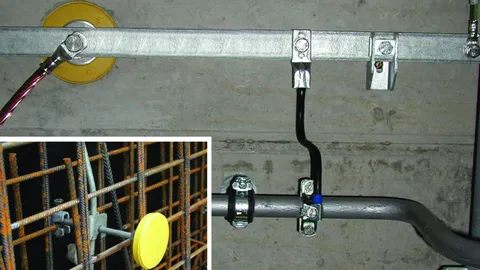

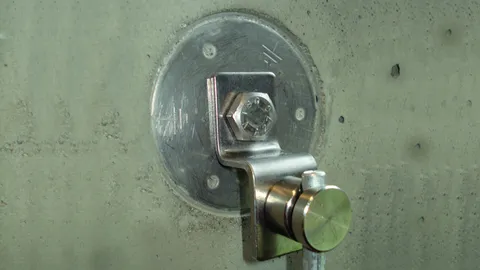

Földelési fixpontok

For installation into concrete as corrosion-free connection to the earth-termination system for protective equipotential bonding and / or functional equipotential bonding of the down conductor e.g. to the reinforcement of buildings.
For the double thread M10 and M12 mind the following minimum lengths of the screws:
35 mm of M10 (thread length 40 mm)
15 mm of M12 (thread length 20 mm)

<TRANSLATION_PLACEHOLDER>

<TRANSLATION_PLACEHOLDER>

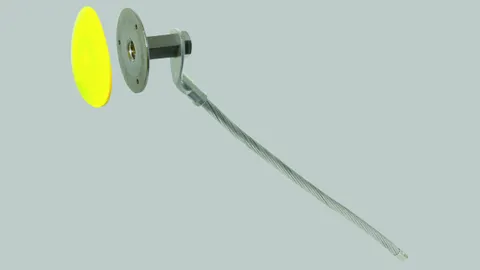

Földelési fixpont M16

With connection thread M16 for higher current loadings (50 Hz), e.g. for connecting the ring equipotential bonding system with the earth-termination systems of power installations with nominal a.c. voltages over 1 kV (transformer earthing).

Összekötő kapcsok földelési fixpontokhoz

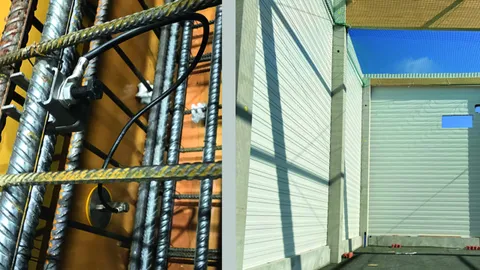

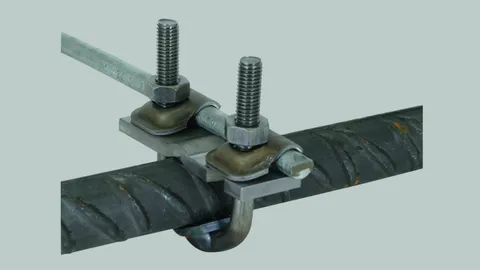

For connecting the reinforcement with clamping frame.
For round conductors or fixed earthing terminals with concomitant fixing in the formwork.

Arrangement:
(II) = parallel
(+) = cross

<TRANSLATION_PLACEHOLDER>

<TRANSLATION_PLACEHOLDER>

Végdarabok

For screwing to the fixed earthing terminal to connect e.g. an equipotential bonding bar or construction elements such as steel girders etc.

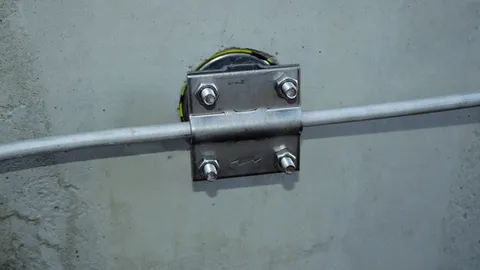

Csatlakozókapocs földelési fixponthoz

For connection of round and flat conductors to fixed earthing terminals with thread M10 / M12 (e.g. Part No. 478 011, 478 200) and thread M16 (Part No. 478 027).

Clamps with thread M10 are also suitable for installation on the back side of the fixed earthing terminal (without connection axis) e.g. to connect flat strip.

Menetes adapter földelési fixponthoz

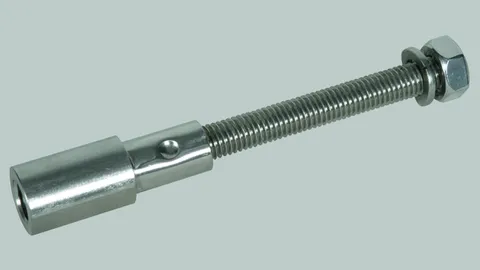

For connection to fixed earthing terminals with thread M10, lock nut and spring washer, for use in case of perimeter insulation or thermal insulation composite systems.

Földelő-/falátvezető elem

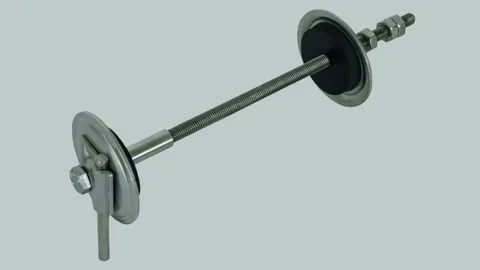

With MV clamp made of StSt (V4A) for round conductors 8-10 mm. For water pressure-tight ducting of the earthing conductor / equipotential bonding conductor through walls and brickwork with StSt threaded rod M10.

For subsequent installation through borehole (Ø14 mm) or through the formwork spreader.
Test for water pressure-tightness up to 1 bar features an installation depth of 10 m in stagnant water.

Fali átvezetés nyomás alatt lévő vízzel szemben

For installation in the formwork.

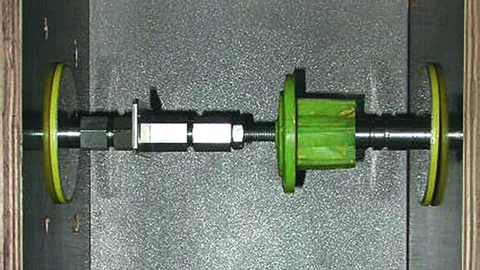

For water pressure-tight bushing of walls, e.g. for connecting the ring earth electrode with the equipotential bonding bar or the equiopotential bonding conductor in the foundation.
Test for water pressure-tightness up to 1 bar features an installation depth of 10 m in stagnant water.
Tested with 5 bar compressed air in accordance with EN 62561-5.

Vízzáró tömítő gallér

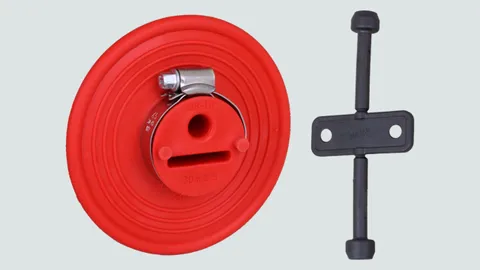

Sealing collar for bushings of watertight foundation slabs / walls (e.g. white tank).
Water pressure-tight for pushing on round / flat conductors with StSt tensioning straps.

Test for water pressure-tightness up to 1 bar features an installation depth of 10 m in stagnant water, additionally tested with 5 bar compressed air according to EN 62561-5.
