Advanced SPD Box Solutions

Modular and flexible configurations with various capabilities and features to include. 600kA per Phase protection, Filtering, Metal/Stainless/Fiberglass enclosures, advanced monitoring and software toolkits. UL1449 Listed Type 1 and Type 2 SPD applications, UL1283, UL96A, NFPA 70 and more.

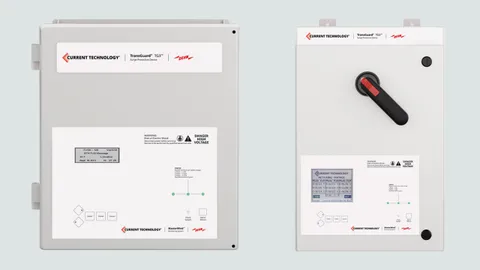

Trans Guard 3

TransGuard® TG3 systems feature a powerful ISM(Integrated Suppression Module) that offers protection up to 600kA per phase for various voltage types in NEMA Metal, Fiberglass or Stainless Steel enclosures with Disconnect options. Additional capabilities include Filtering, Remote Monitoring, Ethernet connectivity, graphic displays, surge counters, alarms, Diagnostic and software toolkits, and more. UL1449 Listed Type 1 and Type 2 SPD applications, UL1283, UL96A, NFPA 70 and more.

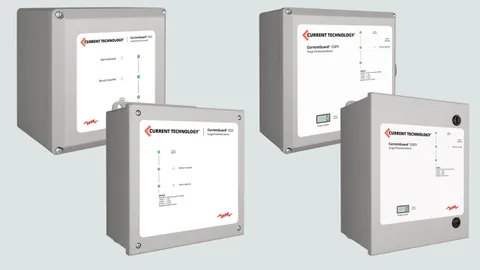

Current Guard 3 & Current Guard Plus 3

CurrentGuard systems feature thermal MOV protection up to 400kA per phase, 200 kA SCCR, optional monitoring with LEDs, dry relay contact, audible alarm. Standard UL1283 EMI/RFI Filter. CurrentGuard Plus systems feature thermal MOV protection up to 400kA per phase, 200 kA SCCR, advanced monitoring is standard with surge counter, tri-color LEDs, dry relay contact, audible alarm. Enhanced UL1283 EMI/RFI Filter. Compact design NEMA4X. UL Listed 1449 for Type 1 and Type 2 SPD applications.

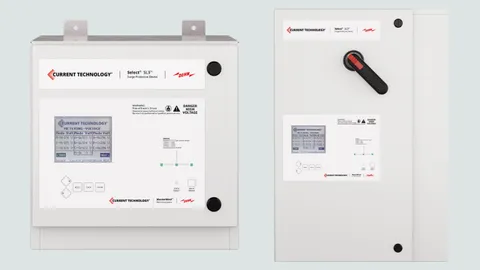

Select SL3

Select SL3 systems feature selenium-enhanced surge protection along with a powerful ISM (Integrated Suppression Module) that offers protection up to 600kA per phase for various voltage types in NEMA Metal or Stainless Steel enclosures with Disconnect options. Additional capabilities include Filtering, Remote Monitoring, Ethernet connectivity, graphic displays, surge counters, alarms, Diagnostic and software toolkits, and more. UL1449 Listed Type 1 and Type 2 SPD applications, UL1283, UL96A, NFPA 70 and more.

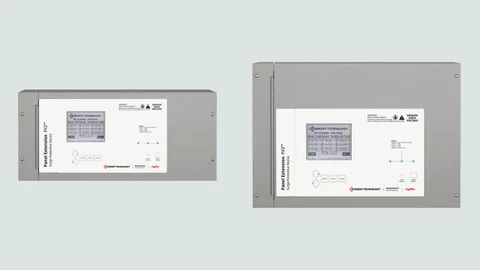

Panel Extension PX3

The PX3 systems offer a reduced profile surge solution. PX3 suppression filter systems feature a powerful ISM (Integrated Suppression Module) that offers protection up to 600kA. NEMA 1 enclosures. Filtering and remote communications options. UL Listed 1449 for Type 1 and Type 2 SPD applications.

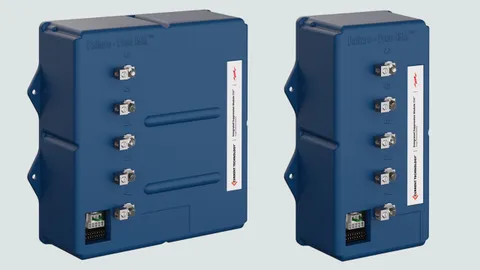

Integrated Suppression Module ISM

The ISM (Integrated Suppression Module) is an integral component utilized in the Current Technology SL3, TG3, and PX3 series surge protection devices with up to 600kA per phase protection and 200kA SSCR. The ISM can be in custom switchgear, switchboard, panelboard, and motor control center applications. The ISM features 6 different monitoring options, Filtering and Diagnostic testkit. UL1449 Listed an Open-Type SPD for Type 1 and 2 SPD applications.

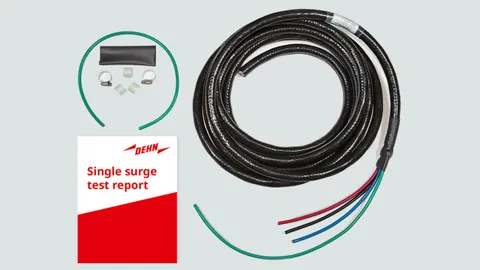

HPI High-Performance Interconnect System

The HPI SPD Connection System is a dual shielded, triple insulated multi-core power conductor specially constructed to minimize interconnection impedance for SPD installations up to 4 times compared to regular cable. Maximize SPD system performance. Options include pre-termination, 6awg, 10awg and various lengths up to 100 feet.

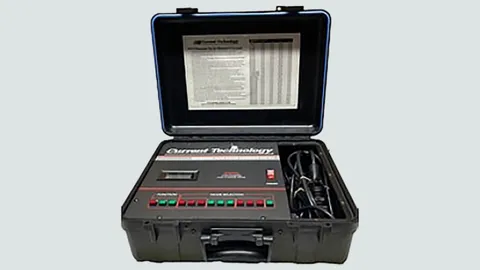

DTS-2 Diagnostic Test Set

DTS-2® Diagnostic Test Set features factory established benchmark testing parameters to test and monitor Current Technology suppression filter systems, record readings and compare variances. DTS-2 ensures maximum suppression filter system performance.

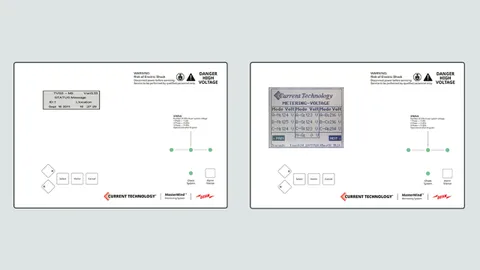

MasterMind - Monitoring Options

The MasterMind monitoring systems are options available on the SL3™, TG3™ and PX3™ advance monitoring options. The primary interface is through a graphical user interface (GUI) presented on a character LED or optional graphic LCD display. Keypad and LED indications act as a secondary user interface. Advanced options also provide Ethernet/Modbus communication that can connect the system to a network of many other devices, which allows the system to respond to queries from other systems. Ethernet connectivity supports Web Server and Modbus TCP applications for remote monitoring of the system.
